Ruby: The Most Comprehensive Methodology for Patent Litigation Prediction

Patent litigation prediction is a complex and critically important task in the field of intellectual property management. The ability to accurately forecast the likelihood of a patent being involved in litigation has significant implications for businesses, inventors, and legal professionals. It can inform strategic decisions related to patent portfolio management, licensing negotiations, and resource allocation for legal defense or enforcement actions.

However, predicting patent litigation poses several challenges:

• Class Imbalance: In typical patent datasets, litigated patents are far outnumbered by non-litigated ones, creating a significant class imbalance problem.
• Complex Feature Interactions: The factors that contribute to patent litigation are numerous and their interactions are often non-linear and
• complex.
• Temporal Dynamics: The likelihood of litigation can change over time as the technological and legal landscapes evolve.
• Data Quality and Availability: Obtaining comprehensive and accurate data on patents and their litigation history can be challenging.

The foundation of our methodology is a comprehensive patent database containing detailed information about patents, including their characteristics, citation information, and litigation history. The quality and richness of this data are crucial for the success of our predictive model.

Our feature engineering process is designed to capture a wide range of patent attributes that may influence the likelihood of litigation. We develop several categories of features. Basic patent information includes the filing date, publication type (encoded categorically), and a binary indicator of whether the patent has been challenged in post-grant proceedings. Citation metrics comprise the number of backward citations (nb), forward citations (nf), and non-patent literature (NPL) citations (nnpl).

Temporal features include years since filing (yf), calculated as the difference between the current year and the filing year, and the filing year itself. We also derive ratios such as the citation ratio (rc = nf / nb), which provides a measure of the patent's impact relative to its technological foundations, and the NPL citation ratio (rnpl = nnpl / nb), indicating the extent to which the patent builds on non-patent prior art.

To normalize the distribution of citation counts, which often follow a power-law distribution, we apply logarithmic transformations to backward and forward citations. We also create interaction terms, such as the citation interaction (ic = nb × nf), to capture the combined effect of backward and forward citations.

Categorical encodings are used for publication type (one-hot encoded) and years since filing, which we bin into categories to capture non-linear effects of patent age on litigation probability. We also create binary indicators for broad technology fields based on the patent's International Patent Classification (IPC) codes.

Assignee features include the assignee size (categorized as small, medium, or large based on the total number of patents held) and the assignee's litigation history, measuring how frequently they have been involved in patent litigation in the past.

These features are designed to capture various dimensions that could influence a patent's likelihood of being involved in litigation, including its technological importance, market value, and temporal characteristics. The inclusion of assignee-related features allows us to account for the strategic behavior of patent holders, which can significantly influence litigation patterns.

To address the inherent class imbalance in patent litigation data and ensure representative sampling, we employ a combination of Synthetic Minority Over- sampling Technique (SMOTE) and stratified cross-sampling.

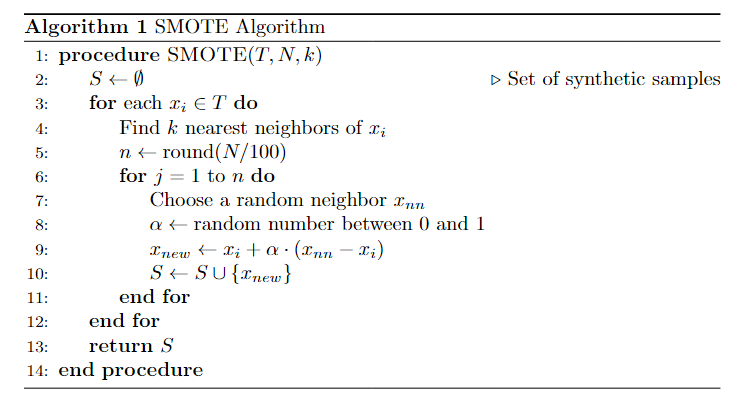

The SMOTE algorithm creates new synthetic samples along the line segments joining any/all of the k nearest neighbors. This approach effectively forces the decision region of the minority class to become more general, addressing the problem of overfitting that can occur with simple oversampling. To ensure that our model training and validation process maintains the appropriate balance between litigated and non-litigated patents, we integrate SMOTE with stratified cross-sampling. This approach ensures that each fold in our cross validation process contains a representative proportion of both classes.

After the initial data preparation and model training, the researchers combine the predictions from two different types of models: Random Forests and Boosted Trees. This combination is called an ensemble. The idea is that by blending the predictions of these two different approaches, we can get a more reliable overall prediction. It's like getting a second opinion and then averaging the two viewpoints.

One key step in the process is setting a threshold for when to predict that a patent will be involved in litigation. The researchers use a method called threshold optimization. They try different threshold levels and see which one gives the best balance between correctly identifying patents that will be litigated (true positives) and avoiding false alarms (false positives). They use a measure called the F1-score, which balances these two concerns, to choose the best threshold.

To make sure their models work as well as possible, the researchers use a technique called hyperparameter tuning. This is like fine-tuning the settings on a complex machine. They adjust various aspects of their models - such as how many decision trees to use or how quickly the model should learn - and see which combinations work best. They use a grid search, which systematically tries different combinations of these settings.

The researchers also employ techniques to prevent their models from becoming too complex and losing their ability to generalize to new patents. One such technique is early stopping, where they stop training the model if its performance on a validation set stops improving. Another is regularization, which adds a penalty for overly complex models to the training process.

Finally, the researchers evaluate their model's performance using several metrics. They look at how often the model is correct overall (accuracy), how well it avoids false alarms (precision), and how well it catches actual litigation cases (recall). They also use a metric called AUC-ROC, which gives an overall measure of the model's ability to distinguish between patents likely to be litigated and those that aren't. To ensure their results are reliable, they calculate confidence intervals for these metrics using a technique called bootstrap resampling.

This advanced method of predicting patent litigation can be valuable for companies, investors, and legal professionals. It can help in managing risk, making strategic decisions about patent portfolios, and allocating resources for potential legal challenges. However, it's important to remember that these are predictions based on historical patterns, and the actual outcome for any specific patent may depend on many factors that are difficult to predict.

The results demonstrate the impressive performance of the patent litigation prediction model after optimization. The optimal threshold of 0.83 indicates that the model is quite conservative in its predictions, only flagging patents as likely to be litigated when it's very confident. This approach yields excellent precision, with 98.74% of the patents predicted to be litigated actually ending up in litigation. This high precision is crucial for reducing false alarms, which could lead to unnecessary concern or action.

The model's recall of 69.75% shows it correctly identifies a significant portion of all litigated patents, though it does miss some cases. The F1 score of 0.8175, which balances precision and recall, indicates strong overall performance. The accuracy of 69.87% might seem modest, but it's important to remember that predicting patent litigation is a challenging task with many variables.

This balanced approach, favoring precision over recall, is particularly valuable in the context of patent litigation prediction. It means that when the model flags a patent as high-risk for litigation, stakeholders can be very confident in that assessment and allocate resources accordingly. While it may not catch every potential litigation case, it provides highly reliable predictions for the cases it does identify. This makes it a powerful tool for risk management and strategic decision-making in patent portfolios, allowing companies and investors to focus their attention and resources where they're most likely to be needed.

Avaya, a long-standing communications technology company, recently sold a large portfolio of patents to Arlington Technologies, a subsidiary of Dominion Harbor. This transaction involved over 1,500 patents related to Voice over Internet Protocol (VoIP) technology - essentially, ways to make phone calls over the internet. Avaya, having faced financial challenges and emerged from bankruptcy, decided to sell these patents as part of their strategy to focus on cloud-based solutions and improve their financial position.

Dominion Harbor, through Arlington Technologies, is known for acquiring large patent portfolios and monetizing them through licensing and, when necessary, litigation. They're often referred to as a non-practicing entity (NPE) or, more controversially, a "patent troll" because they don't typically use the patents to make products themselves, but instead profit from licensing or litigating these patents.

Companies operating in related technology areas could use a patent litigation prediction tool to understand and prepare for the behavior of NPEs like Dominion Harbor. When an NPE acquires a large patent portfolio, the prediction tool can analyze which patents in the newly acquired portfolio are most likely to be asserted in litigation. This allows companies to prioritize which patents to examine closely and potentially take preemptive action on.

By identifying high-risk patents, companies can make informed decisions about whether to seek licenses proactively, invest in designing around the patented technology, or prepare legal defenses in advance. This proactive approach can save significant time and resources compared to reacting to surprise litigation. Understanding which patents an NPE is most likely to assert can also help companies budget more accurately for potential legal expenses or licensing costs, allowing them to allocate resources more efficiently.

Moreover, by analyzing patterns in an NPE's patent assertions over time and comparing them with the tool's predictions, companies can gain insights into the NPE's strategy. This can help in predicting future behavior and inform long-term technology and legal strategies. When considering partnerships or acquisitions in a particular technology space, companies can use the tool to assess the litigation risk associated with the patent portfolios involved, adding another layer of insight to the due diligence process.

In sectors where NPE activity is common, companies could use the tool to analyze not just individual NPE portfolios, but the overall patent landscape. This broader view can inform industry-wide strategies and potentially lead to collaborative approaches to managing NPE risks. If a company does end up in licensing negotiations with an NPE, having data-driven insights about which patents are most likely to be successfully litigated can provide leverage in these discussions, allowing the company to focus on the most relevant patents rather than the entire portfolio.

By leveraging a patent litigation prediction tool in these ways, companies can move from a reactive to a proactive stance when dealing with NPEs. Instead of waiting for assertion letters or lawsuits, they can anticipate potential issues, prepare strategically, and potentially mitigate risks before they materialize into costly legal battles. This approach not only helps in managing specific NPE interactions but also contributes to a more informed and strategic approach to intellectual property management overall.

The patent litigation prediction tool, integrated with Unified Patents' PVIX scoring system, represents a significant leap forward in patent portfolio management and risk assessment. This innovative approach offers a multifaceted view of patent value and litigation risk, enabling companies to make more informed decisions about their intellectual property strategies. By visualizing the relationship between litigation probability and PVIX scores, stakeholders can quickly identify high-risk patents that may require immediate attention or strategic action.

While the tool's current integration with PVIX scores provides valuable insights, its true potential lies in its flexibility and adaptability to incorporate other relevant metrics. For instance, the chart you've provided seems to illustrate additional patent-related data points or metrics. By incorporating such supplementary information - which could include factors like patent age, citation count, claim breadth, or technology field relevance - the tool could offer an even more comprehensive analysis of patent portfolios.

This multi-dimensional approach would allow users to create a more nuanced and detailed risk profile for each patent. For example, combining litigation probability and PVIX scores with metrics on technological relevance or market value could help identify patents that are not only at high risk of litigation but also critical to a company's competitive advantage. Similarly, incorporating data on patent age or maintenance fees could help prioritize actions on patents nearing expiration or requiring significant investment to maintain.

By leveraging a diverse set of metrics, the tool could evolve into a powerful decision-support system for patent strategy. It could assist in various aspects of intellectual property management, from guiding R&D investments and informing licensing strategies to optimizing patent prosecution and maintenance decisions. As the patent landscape continues to grow in complexity, tools that can synthesize multiple data points into actionable insights will become increasingly valuable for companies seeking to maximize the value of their intellectual property portfolios while mitigating associated risks.

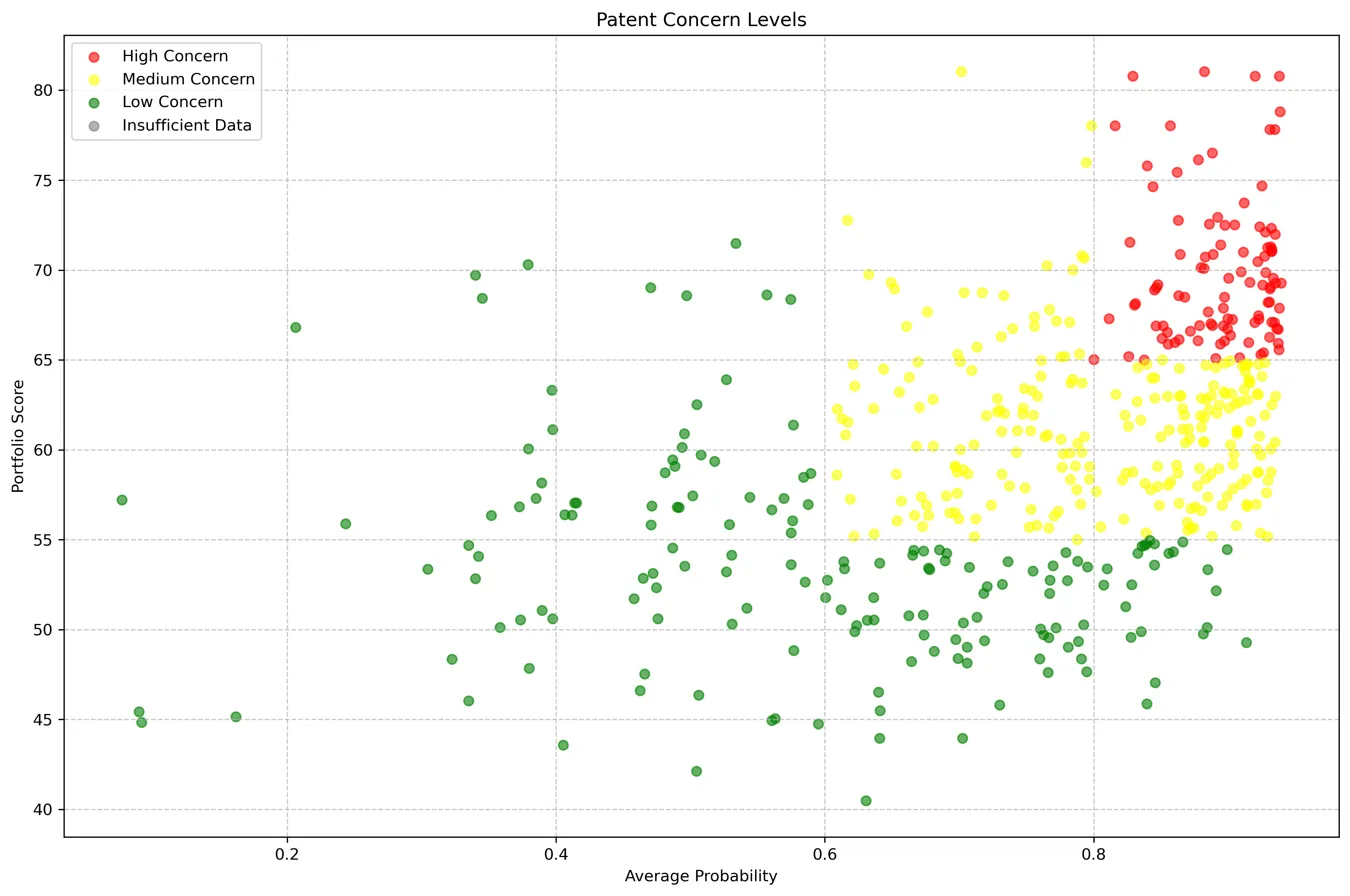

This scatter plot, titled "Patent Concern Levels," provides a visual representation of the relationship between a patent's average probability of litigation and its PVIX score as calculated by Unified Patents. The x-axis represents the average probability of litigation, while the y-axis shows the PVIX score. Each point on the graph represents an individual patent, color-coded to indicate its level of concern.

The plot categorizes patents into four distinct groups: High Concern (red), Medium Concern (yellow), Low Concern (green), and Insufficient Data (gray). High Concern patents, clustered in the upper-right quadrant, exhibit both high average probability of litigation (generally above 0.8) and high PVIX scores (typically above 65). This suggests a strong positive correlation between litigation probability and PVIX score for the most problematic patents. The Medium Concern category, represented by yellow dots, forms a substantial cluster in the center of the plot, indicating a wide range of litigation probabilities and PVIX scores for patents of moderate concern. Low Concern patents, shown in green, are primarily scattered in the lower-left area of the plot, though some are distributed across other regions, suggesting lower litigation probabilities or PVIX scores. A few gray dots represent patents with insufficient data for categorization.

The distribution of points across the plot reveals clear patterns in the patent landscape. There's a noticeable trend where higher litigation probabilities often correspond with higher PVIX scores, particularly evident in the High Concern category. This visualization allows for quick identification of patents that may require closer attention or strategic management based on their potential for litigation and their PVIX scores. The scatter plot effectively demonstrates the utility of combining litigation probability assessments with Unified's PVIX scoring system to provide a comprehensive view of patent risk and value.

Forward citations of patents have emerged as a valuable proxy for litigation probability, offering insights into a patent's potential legal vulnerabilities. By leveraging machine learning algorithms, researchers can analyze vast datasets of patent information, including citation networks and litigation histories, to identify patterns and correlations. These models can be trained to predict the likelihood of a patent being involved in litigation based on its forward citation characteristics. The arithmetic PVIX (Patent Validity Index) score, developed by Unified Patents, provides an additional dimension to this analysis. When combined with forward citation data in a robust machine learning framework, a strong correlation often emerges between high forward citation counts, elevated PVIX scores, and increased litigation probability. This relationship serves as a powerful robustness check, validating the use of forward citations as a litigation proxy and enhancing our ability to assess patent quality and potential legal risks in a more nuanced and data-driven manner.

The patent litigation prediction tool, combined with Unified Patents' PVIX scoring system, represents a significant advancement in patent portfolio management and risk assessment. This innovative approach provides a comprehensive view of patent value and litigation risk, allowing companies to make more informed decisions about their intellectual property strategies. By visualizing the relationship between litigation probability and PVIX scores, stakeholders can quickly identify high-risk patents that may require immediate attention or strategic action.

The tool's ability to categorize patents into High, Medium, and Low Concern levels offers a nuanced understanding of patent portfolios. This categorization, coupled with the scatter plot visualization, enables companies to prioritize their resources effectively, focusing on patents that pose the greatest potential for litigation while also considering their inherent value as indicated by the PVIX score. Furthermore, this integrated approach can assist in various aspects of patent strategy, including licensing negotiations, patent acquisition or divestment decisions, and overall portfolio optimization. As the patent landscape continues to evolve and become more complex, tools that combine predictive analytics with established valuation metrics like PVIX are becoming increasingly valuable for navigating the challenges of intellectual property management in the modern business environment.
